Russound SaphIR 862 Eye

The 862 Eye IR Receiver receives IR signals from a handheld IR remote control and relays these signals to the audio-video equipment for operation from another room.

Receive IR frequency range:
36 kHz–58 kHz

Transmit IR frequencies:
40 kHz and 56 kHz

Range on axis:
55–80 feet (16.8–24.4 m)

Range 30° off axis:
30–55 feet (9.1–16.8 m)

Sensitivity adjustment:
Automatic gain control

Visual indication:
Blue signal confirmation LED

Recommended cable:
2 twisted pair, with or without shield

Cord length:
6.5’ (2.0 m)

Wire connectors:
Screw terminal strip (included)

Power requirement:
12 VDC 31 mA max

Dimensions:
0.46" Diameter x 2.03" Length (1.2 x 5.2 cm)

Compatible  Receives commands from most brands of remote controls for seamless integration

Unobtrusive  Compact low-profile design allows installation in a variety of locations

Responsive  Unique SaphIR blue LED provides clear visible confirmation of signal reception

High performance  Wide-band, wide-angle reception assures outstanding pickup range

Reliable  Russound’s own IR circuit design includes automatic gain control for significantly reduced interference

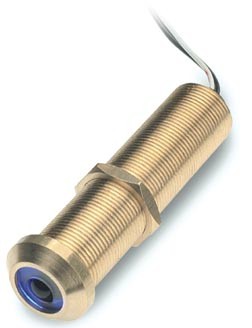

The SaphIR 862 Eye is a mini flush-mount IR receiver that can be installed virtually anywhere. Highly unobtrusive, the 862 Eye includes white, black, and brass bezels for installation flexibility.

The 862 Eye is ideal for use with in-wall and in-ceiling loudspeakers for an invisible yet readily accessible location. Russound’s Advantage Series loudspeakers provide a punchout that the 862 Eye fits into perfectly.

A blue confirmation LED provides visual indication when the 862 Eye receives IR signals.

Russound SaphIR 862 Eye Manual
