Russound SaphIR 862P Plasma Eye
- Overview
- Specifications
- Features
- Description
- Downloads
- Price Beat
The 862P Eye Plasma-friendly IR Receiver receives IR signals from a handheld IR remote control and relays these signals to the audio-video equipment for operation from another room.
Receive IR frequency range:
36 kHz–58 kHz
Transmit IR frequencies:
40 kHz and 56 kHz
Range on axis:
55–80 feet (16.8–24.4 m)
Range 30° off axis:
30–55 feet (9.1–16.8 m)
Sensitivity adjustment:
Automatic gain control
Interference rejection:
Plasma filter
Visual indication:
Blue signal confirmation LED
Recommended cable:
2 twisted pair, with or without shield
Cord length:
6.5’ (2.0 m)
Wire connectors:
Screw terminal strip (included)
Power requirement:
12 VDC 31 mA max
Dimensions:
0.46" Diameter x 2.03" Length (1.2 x 5.2 cm)
Compatible Receives commands from most brands of remote controls for seamless integration
Unobtrusive Compact low-profile design allows installation in a variety of locations
Responsive Unique SaphIR blue LED provides clear visible confirmation of signal reception
High performance Wide-band, wide-angle reception assures outstanding pickup range
Reliable Filters out interference from plasma TVs, compact fluorescent lights, and sunlight

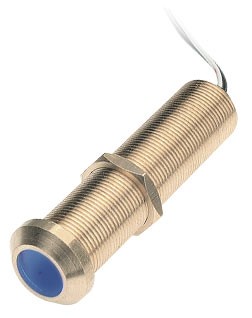

The SaphIR 862P Plasma Eye is a mini flush-mount IR receiver that can be installed virtually anywhere. Highly unobtrusive, the 862P includes white, black, and brass bezels for installation flexibility.
Special optical filtering makes the 862P immune to interference from plasma displays, making it an ideal choice for home theater applications. A blue confirmation LED provides visual indication when the 862P receives IR signals.
The 862P Plasma Eye is also ideal for use with in-wall and in-ceiling loudspeakers for an invisible yet readily accessible location. Russound’s Advantage Series loudspeakers provide a punchout that the 862P fits into perfectly.
