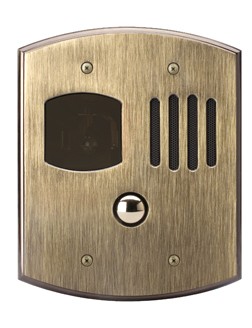

Russound ISK4 Compoint Camera Door Station

With the ISK4 Camera Door Station users can now have the convenience of security monitoring added to their doorbell and intercom functions. It lets homeowners see who’s at the door from a television or dedicated monitor located anywhere in the home, without a bulky, unattractive security camera. The ISK4 Camera Door Station combines a discreet video camera with doorbell and two-way communication to make your home even more secure. Connected to a television or security monitor, the low-light camera lets you see who’s at the door.

Please click here for an interactive demo

User control:
Call button with amber backlight

Audio input:
Built-in microphone with automatic gain control

Amplifier:
Monaural (for system functions only)

Volume control:
Installer-adjustable potentiometer

Audio output:
Built-in speaker

Video output:
Composite, 75 ohms unbalanced

Camera resolution:
600 horizontal lines

Camera sensitivity:
0.1 lux minimum illumination

Cover plate:
Weatherproof plated die-cast zinc

Intercom CAT-5 connector:
110 punch-down block

Doorbell connector:
2-pole screw terminal

Doorbell wire size:
Up to 18 AWG (1.024 mm)

Doorbell contact:
1 A @ 12 VDC

Door station power requirement:
15 VDC 220 mA maximum (provided from ComPoint hub)

Camera power requirement:
12 VDC regulated, 100 mA (use Russound 846C power supply)

Available finishes:
Antique brass, brushed chrome

Dimensions:
4.8” W × 5.8” H × 2.9” D (12.1 × 14.8 × 7.3 cm)
Fits UL/CSA-approved double-gang 32 ci (524 cubic cm) wall box

Weight:
15.8 oz (448 g)

Versatile  Wide-angle low-light camera lets you see who is at the door

Convenient  A single button press rings the doorbell and allows two-way audio communication between you and your visitor

Hands-free  Visitor can reply to you without pressing the button again

Elegant  Available in two distinctive finishes to fit any style home

Durable  Weather-resistant construction for long life

The ISK4 Camera Door Station combines a discreet video camera with doorbell and two-way communication to make your home even more secure. Connected to a television or security monitor, the low-light camera lets you see who’s at the door.

Compatible with the entire line of Russound ComPoint products, the ISK4 provides reliable, high-quality communication with ComPoint keypads inside your house. Each of two Camera Door Stations may have its own distinctive door chime for easy recognition.

Environmentally tested for weather resistance, the ISK4 features a gasketed solid metal cover plate available in antique brass or brushed chrome. A subtle amber backlight makes it easy to find the doorbell button in the dark.

Russound ISK4 Compoint Camera Door Station Brochure

Russound ISK4 Compoint Camera Door Station Manual

Russound ISK4 Compoint Camera Door Station System Manual

Russound ISK4 Compoint Camera Door Station Product Brief

Russound ISK4 Compoint Camera Door Station Data Sheet

Russound ISK4 Compoint Interactive Demo
