The A-C68 caters to end users who want more control over their multiroom systems with the ability to control the system from anywhere in the house. Six source inputs, simplified programming, IR remote control and user adjustable sound controls make listening to music throughout the home easier than ever.

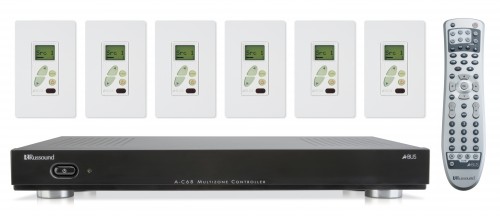

Included in this package is:
A-C68 Controller (1)
A-K5L amplified keypads (6)
A-SRC1 system remote control (1)
Set of rack ears (1)
845.1 IR emitters (1)

A-C68 Controller

Source inputs :
(6) Stereo audio sources, line-level RCA jacks with trim potentiometers

Source loop outputs:
(6) Buffered stereo outputs, line-level RCA jacks

Dedicated source IR outputs:
(6) 1/8” (3.5 mm) TS jacks, tip = signal

Common IR output:
(1) 1/8” (3.5 mm) TS jack, tip = signal

Mute trigger input:
(1) 1/8” (3.5 mm) TS jack, tip positive, 12 VDC

Page audio input:
(1) 1/8” (3.5 mm) TS jack with trim potentiometer

System trigger output:
(1) 1/8” (3.5 mm) TS jack, tip positive, 12 VDC 100 mA
Zone keypad outputs
(8) RJ-45 jacks, T568A standard

Control Link input and output:
(2) RJ-45 jacks, T568A standard

Maximum source audio input:
3.5 Vrms

Audio input impedance:
60 Kohms

Frequency response:
20 Hz – 20 kHz ±0.1 dB

Total harmonic distortion:
<0.3%

Signal-to-noise ratio:
105 dB A-weighted / 101 dB unweighted

Power requirement:
100–240 VAC 50–60 Hz

Fuse rating:
240 V input; T1.25A Europe

Dimensions:
16.75” W x 10.5” D x 2.125” H
(42.5 x 26.7 x 5.4 cm)

Rack mounting:
1U space, rack ears included

Weight:
12.7 lb (5.8 kg)

A-K5L Amplified Keypad:

Display:
5-character LCD panel with source and volume indication

Backlight:
User-selectable green or amber

Controls:
Power on / off
Source select (with multisource hub)
Volume up / down

IR control:
Built-in IR receiver with pass-through

Indicators:
System status LED (green)
IR confirmation LED (red)

CAT-5 cable connector:
RJ-45 jack, T568A standard

Maximum CAT-5 cable length:
150 feet (46 m)

Line and speaker outputs:
Screw terminal connectors
Accept up to 16 AWG (1.5 mm) wire

Line output:
Variable line level, stereo

Speaker output impedance:
8 ohms per channel

Audio input impedance:
30 Kohms

Power requirement:
24 VDC 1050 mA peak

Dimensions in wall:
1.75” W x 2.875” H x 1.75” D
(45 x 73 x 45 mm)

Weight:
5.5 oz (160 g)

*EU/UK Kits Contain Screwless Wallplates

The A-C560 Controller Kit includes:
A-C68 Controller (1)
A-K5L amplified keypads (6)
A-SRC1 system remote control (1)
Set of rack ears (1)
845.1 IR emitters (1)

A-C68 Controller

Smart Preprogrammed IR library with IR learning for complete control

Advanced Provides controls and features usually found on more expensive systems

Modular Component sized and rack mountable

Expandable Connect multiple units to add up to 48 zones

A-K5L Amplified Keypad

Powerful Digital amplification for robust sound

Smart LCD panel displays source name and volume level

Advanced All On/Party mode and paging settings (with A-C68 controller only)

Modular Line output connection for external amplifier or subwoofer

Adaptable Dual-color keypad illumination

Russound’s A-C560 A-BUS Controller Kit provides advanced multiroom audio system features in an installer friendly package.

Designed for easy installation and programming, it includes A-C68 six-source, eight-zone multiroom controller, a rack-mountable chassis with an internal power supply; an onboard library of IR codes and supports IR learning. The A-C68 also features independent source gain control, source power management, sleep timer function for all zones, and all-zone “party mode”. Systems are scalable to support up to six A-C68 controllers linked to make a 48-zone system with six sources. The A-SRC1 system remote is designed exclusively for the A-C68 and provides complete source control.

The all-new A-K5L keypad delivers more power output through the use of a highly efficient Class D amplifier. The keypad lets you adjust bass, treble and loudness, as well as set paging and local source turn-on volume for complete sound control. It features an LCD panel to view the selected source and audio settings and supports selection of six sources. The A-K5L gives you a choice of amber or green backlighting, and includes an IR receiver and IR confirmation through an LED status indicator.

With more features, more power, and more control, Russound’s new A-C560 A-BUS Multiroom Controller Kit is the only system that delivers advanced multiroom features with the easy installation of A-BUS.
