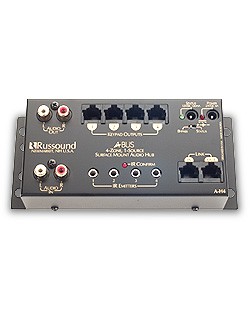

The A-H4 is an A-BUS 4-zone, 1-source Audio Distribution Hub used with A-BUS Amplified Modules. The A-H4 can also be linked to other A-BUS Hubs (such as the A-H484) and to A-BUS Ready stereo receivers in order to increase the number of zones in a system.

Audio input and loop output connectors:
Line-level stereo RCA jacks

IR emitter connectors:
(4) 1/8” (3.5 mm) TS jacks, tip positive

Link In and Link Out connectors:
RJ-45 jacks, T568A standard

Keypad outputs:
(4) RJ-45 jacks, T568A standard

Status power connector:
2.5 mm jack, tip positive

Status power:
(optional) 12 VDC 100 mA

Power connector:
2.5 mm jack, tip positive

Power requirement:
24 VDC 2.5 A (use Russound A-PS power supply)

Dimensions:
6.5” W x 3” H x 1.25” D
(16.5 x 7.2 x 3.2 cm)

Weight:
9.5 oz (270 g)

Compatible  Works with Russound A-KP2 Amplified Keypads and A-VC2 Amplified Volume Controls

Convenient  Provides source status indication on your keypads

Compact  Mounts unobtrusively near your audio equipment, on a shelf or in a rack or cabinet

Complete  Includes a source loop output and IR emitter jacks for four source components

Expandable  Links to other hubs for more zones

The A-H4 hub is the heart of a single-source A-BUS music system. It sends the output of your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. If you want music in more rooms, multiple A-H4 hubs can link together to provide more A-BUS zones.

With a receiver or preamplifier connected to the A-H4, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer.

For added convenience, an optional Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it’s turned off.

The A-H4 is designed for surface mounting, such as on a shelf or in a rack with your source equipment.
