Russound A-H484
- Overview
- Specifications
- Features
- Description
- Downloads
- Price Beat

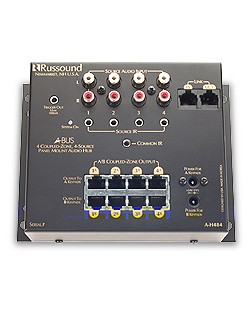

The A-H484 is an A-BUS 4-zone, 8-room, 4-source Audio Distribution Hub. Used with IR-repeating Amplified Keypads (e.g., A-KP2) and the A-LRC-1 remote, the A-H484 allows each of 4 zones to independently select any of 4 sources. Each of the 4 zones can support 2 Keypads, making it possible to create an 8-room system.
Keypad connectors:
RJ-45 T568A standard
Link connectors:
RJ-45 T568A standard
Emitter connectors:
1/8" TS connector, tip (+), sleeve (–)
Trigger output:
12 VDC 100 mA 1/8" TS connector, tip (+), sleeve (–)
Power requirement:
A-PS power adapter,
24 VDC 4 A (one required for each group of 4 keypads)
Dimensions:
6.5" W x 5" H x 1.5" D (16.5 x 12.7 x 3.8 cm)
Weight:
1 lb 12 oz. (795 g)
Convenient Serves up to eight rooms in four zones—two rooms per zone
Expandable Multiple hubs link together to create more zones
Compact Easily mounts on shelf or wall near audio equipment
Flexible Provides both routed and common IR outputs as well as 12-volt trigger output
The A-H484 multisource hub allows you to play up to four audio sources through your A-BUS system. You can select any source independently in each zone at the keypad or with an A-LRC1 remote control. Each zone may have one or two rooms with A-KP2 Amplified Keypads.
To control the sources, you can use either the A-LRC1 or the source manufacturer’s remote. The A-H484 passes source commands from each zone to the source selected in that zone. It also provides a common IR output to pass source commands from all zones.
The A-H484 provides four zones. Multiple A-H484 hubs can be linked together to accommodate larger systems.
