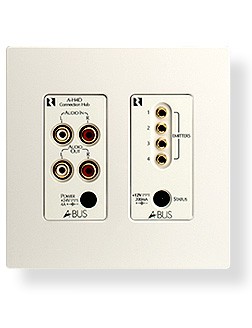

The A-H4D is an A-BUS® in-wall, 4-zone, 1-source Audio Distribution Hub used with A-BUS® Amplified Control Modules. Th eA-H4D can accomodate 4 additional Amplified Control Modules when used with the A-H4Dx Expansion Hub, which plugs into the side of the A-H4D.

Audio input and loop output connectors:
Line-level stereo RCA jacks

IR emitter connectors:
(4) 1/8” (3.5 mm) TS jacks, tip positive

Expansion connector:
8-pin female socket

Keypad connectors:
(4) 110 punch-down blocks

Status power connector:
2.5 mm jack, tip positive

Status power:
(optional)12 VDC 100 mA

Power connector:
2.5 mm jack, tip positive

Power requirement:
24 VDC 2.5 A (use Russound A-PS power supply)

Dimensions:
3.54" W x 2.91" H x 1.46" D
(9.0 x 7.4 x 3.7 cm)

Weight:
8 oz (226 g)

Compatible  Works with Russound A-KP2 Amplified Keypads and A-VC2 Amplified Volume Controls

Convenient  Provides source status indication on your keypads

Complete  Includes a source loop output and IR emitter jacks for four source components

Neat  Decora®-style device installs in the wall near your audio equipment

Expandable  More zones can be added with A-H4Dx Expansion Hubs (each A-H4Dx occupies an additional gang)

As the heart of a single-source A-BUS system, the A-H4D hub sends music from your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. To provide music in more rooms, one or more A-H4Dx Expansion Hubs can be added to the A-H4D.

With a receiver or preamplifier connected to the A-H4, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer.

For added convenience, a Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it’s turned off.

Designed with an attractive Decora® style, the A-H4D installs in a double-gang wall box.
