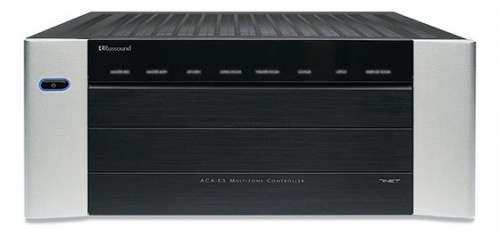

Russound ACA-E5 Multiroom Controller Amplifier

The cornerstone of Russound’s E-Series Multizone system is the ACA-E5 Multizone Controller Amplifier. With eight zones of audio and video distribution from twelve sources and highly efficient Class D digital amplifiers, the ACA-E5 is the most powerful controller amplifier from the #1 brand in multiroom audio.

Included in this package is:
1 x Russound ACA-E5 Multizone Controller

Please call 0141 773 6886 to discuss current pricing and installation costs.

Zones:
8 per controller, 48 total per system

Sources:
12 stereo audio and composite video, including built-in tuner
1 expansion slot for optional smart source module

Subzone expansion:
Supports 2 optional four-zone A-BUS subzone modules

Control interfaces:
Russound KLK-E5 keypads
Russound TSV-E5 touchscreens
Russound RFR-E5 RF remote
RS-232 control systems

Convenience features:
System on/off from any keypad
Muting for doorbell or telephone
Paging capability to all zones
Do Not Disturb mode
Party mode

Zone audio controls:
Volume
Balance
Bass and treble
Loudness compensation

AM tuner:
Tuning range: 530–1710 kHz
AM antenna impedance: 300 ohms balanced
Sensitivity @ 20 dB S/N: 55 dBu
Image rejection: 33 dB
S/N ratio: 45 dB

FM tuner:
Tuning range: 87.7–107.9 Mhz
FM antenna impedance: 75 ohms unbalanced
Sensitivity @ 30 dB S/N: 6 dB max 12 dBu
Image rejection: 80 dB
S/N ratio: 60 dB

Audio amplifier:
Total channels: 12
Power: 40 watts per channel, 1 kHz into 8 ohms with <5% THD+N,
          2 channels at full power, 10 channels at 1/8 power
Minimum load impedance: 4 ohms
Frequency response: 20 Hz – 20 kHz ±1 dB at 1 watt output into 8 ohms
Total harmonic distortion: <0.05%, 1 watt output into 8 ohms, 20 Hz – 20 kHz
Signal-to-noise ratio: 93 dB unweighted, 96 dB A-weighted

Audio connections:
Source inputs: 12 (including internal tuner)
Source loop outputs: 12
Zone outputs: 6 speaker level, 8 line level
Paging input: 1 mono with signal sense
Paging output: 1 mono

Video connections:
Source inputs: 12
Source loop outputs: 12
Paging input: Composite video with signal sense
Paging output: Composite video

RNET A/V connections:
Input: 2 RJ45 jacks, T568A standard
Output: 8 RJ45 jacks, T568A standard

Trigger connections:
Zone output triggers: 8 12 VDC 100 mA
Common output trigger: 1 12 VDC 100 mA
Paging triggers: 1 input, 1 output 12 VDC 100 mA
Home theater trigger: 1 12 VDC
Doorbell triggers: 2 12 VDC 120 mA
Latch output triggers: 2 24 VAC/DC 1 A

Communication ports:
Serial interface: 2 RS-232 DB9 connectors, 19.2 kHz and 115.2 kHz baud rate
USB: 2 USB 2.1/1.1 (master and slave)
Ethernet: RJ45 jack, 10/100 Base T with link and activity LEDs
RNET Link: 2 RJ45 (in and out)

IR control:
Routed IR output: 6 shared 1/8” (3.5 mm) mini jacks
Common IR output: 3 1/8” (3.5 mm) mini jacks

Power:
Voltage: 220–240 V ~ 3.15 A, 50/60 Hz
Fuse rating: 220–240V/T3.15A 250V Europe

Physical:
Dimensions: 17” W x 7” H x 17.5” D (43.2 x 17.8 x 44.5 cm)
Weight: 32.75 lb (14.7 kg)

12 source inputs
8 zone outputs
Internal AM/FM tuner
Optional Smart Source module (SIRIUS, XM®, AM/FM tuners)
2 optional 4 zone A-BUS® subzone modules
Ethernet port
IP and web server support
2 USB ports
2 RS-232 serial ports
Remote source inputs
Doorbell chimes and paging capability
Audio and video sensing inputs
Composite video switching
Home theater triggers
Remote zone outputs

The ACA-E5 is an advanced eight-zone, twelve-source multiroom controller amplifier with an internal AM/FM tuner. With an advanced feature set, the ACA-E5 represents the latest in technology from the #1 brand in multiroom audio.

12 audio-video inputs
Each of the 12 source inputs of the ACA-E5 includes RCA connections for stereo audio and composite video.

Source inputs 1 and 2 feature RNET A/V inputs that allow direct connection of RNET® Smart sources such as the iBridge® Dock or connection of remotely located sources such as satellite or cable television boxes, or DVD players. RNET A/V inputs use CAT-5e cable, allowing for sources to be located up to 300 feet (91 m) from the ACA-E5.

Source input 11 includes an internal expansion slot for radio modules, such as the AM/FM Radio Module, XM® Satellite Radio Module, or the SIRIUS Satellite Radio Module. If a radio module is not used, this input functions as a regular audio-video source input.

Source input 12 is an internal AM/FM tuner. If the radio tuner is not used, this input can be programmed as a regular audio-video source input.

8 distribution zones
Zones 1 through 6 feature high-current two-channel digital amplifiers with 40 watts per channel output along with line-level outputs. Zones 7 and 8 offer only fixed or variable line-level outputs. These zones work well for larger areas that require additional amplification, or for zones that have an existing amplifier, such as a home theater.

In addition to the eight zones of output, the ACA-E5 provides two solutions for system expansion through subzones. Included with each zone is an RNET A/V output, which allows audio and video signals to be distributed up to 300 feet (91 m) on CAT-5e cable to a remote location. From there, an additional amplifier and volume control can be added to create a system subzone. Also available are optional, field-installable A-BUS® subzone modules with four zones each. The zones in the A-BUS modules correspond to individual zones of the ACA-E5. If system expansion through subzones doesn’t meet the needs of the designer, up to 5 ZXP-E5 Zone Expanders can be linked to an ACA-E5 to provide coverage for up to 38 zones.

Along with increased flexibility of source inputs and zone distribution, the ACA-E5 also has enhanced features to increase the functionality of a multiroom controller amplifier.

Paging and doorbell muting capability
Integrates with doorbell, telephone, intercom, and paging systems.

Doorbell and remote latch control
Hear the doorbell throughout your multiroom system, or mute the doorbell with the Do Not Disturb function. Unlatch the door remotely to let guests in.

Ethernet port
Allows for programming and system diagnostics over the Internet.

RS-232 ports
Integrate the ACA-E5 with home automation systems.

USB port
For programming, system connections, or future interface devices.

Russound ACA-E5 Brochure
