Russound AFM

Russound AFM

  • Overview
  • Specifications
  • Features
  • Description
  • Downloads
  • Price Beat

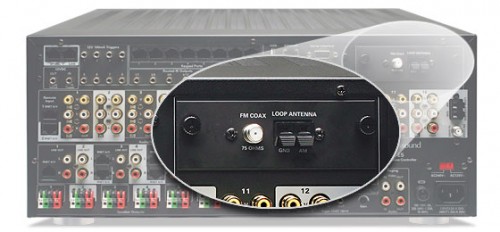

The AFM module is an optional tuner module for the ACA-E5 controller. This AM/FM tuner module is field-installable and is secured with thumb screws. It supports a 75-ohm FM antenna and a 300-ohm AM antenna. The AFM module is configured as a source through SCS-E5 configuration software.

Included in this package is:
1 x AFM AM/FM Radio Module
1 x AM Antenna
1 x FM Antenna

All Russound products included in the RNET series should only be installed by RNET certified installers.

AM tuner:
Tuning range: 530 - 1710 kHz
Antenna impedance: 300 ohm unbalanced
Sensitivity @ 20dB S/N: 55 dBu
Image rejection: 33dB
S/N ratio: 45 dB

FM tuner:
Tuning range: 87.7 - 107.9 Mhz
Antenna impedance: 75 ohm unbalanced
Sensitivity @ 30 dB S/N: 6 dB max 12 dBu
Image rejection: 80 dB
S/N ratio: 60 dB

Physical:
Dimensions: 3.875”W x 1.313”H x 6.188”D (9.84 x 3.34 x 15.72 cm)
Weight: 1 lbs. (0.45 kg)

Included accessories:
(1) AFM module
(1) FM antenna
(1) AM antenna

The AFM module is an optional tuner module for the ACA-E5 controller. This AM/FM tuner module is field-installable and is secured with thumb screws. It supports a 75-ohm FM antenna and a 300-ohm AM antenna. The AFM module is configured as a source through SCS-E5 configuration software.

Whilst we at MIS Online believe our products are already competitively priced, in the unlikely event that you find a similar product cheaper elsewhere why not contact us to see if we can beat that price.

If you find a product cheaper elsewhere please call us on 0141 773 6886 or let us know using this contacts link.


Price:  £ Please call for best price
