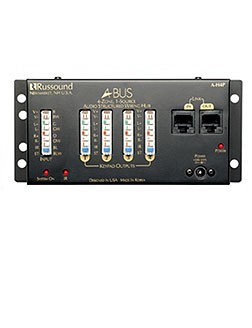

Russound AH-4P
- Overview
- Specifications
- Features
- Description
- Downloads
- Price Beat
The A-H4P is an A-BUS Structured Wiring Hub for A-BUS audio products. This 4-zone, 1-source Hub is used with A-BUS Amplified Modules. The A-H4P can also be linked to other A-BUS Hubs (such as the A-H1) and to A-BUS Ready stereo receivers in order to increase the number of zones in a system. For a complete system the A-H4P must be used with an A-BUS Ready product, hub, keypad module and power supply.
Input:
110 punch-down connector
Keypad outputs:
(4) 110 punch-down connectors
Link In and Link Out connectors:
RJ-45 jacks, T568A standard
Power connector:
2.5 mm jack, tip positive
Power requirement:
24 VDC 2.5 A (use Russound A-PS power supply)
Dimensions:
6.5” W x 3” H x 1.25” D
(16.5 x 7.2 x 3.2 cm)
Weight:
11.5 oz (326 g)
Compatible Works with Russound A-KP2 Amplified Keypads and A-VC2 Amplified Volume Controls
Efficient Provides a structured wiring solution for your A-BUS system
Compact Mounts out of sight in a structured wiring panel
Easy hookup Provides punch-down connectors for quick installation with CAT-5 cable
Expandable Links to other A-H4P hubs for more zones
Designed for installation in a structured wiring panel, the A-H4P sends the output of your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. If you want music in more rooms, multiple A-H4P hubs can link together to provide more A-BUS zones.
Your audio source connects to the A-H4P through the A-H1 Audio Interface Hub, With a receiver or preamplifier connected to the A-H4P, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer.
For added convenience, a Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it’s turned off.
The A-H4P provides a highly affordable structured wiring solution for a single-source A-BUS system.
