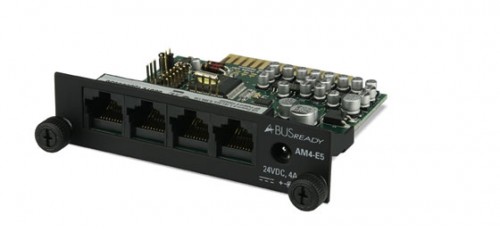

Russound AM4-E5

Russound AM4-E5

  • Overview
  • Specifications
  • Features
  • Description
  • Downloads
  • Price Beat

The AM4-E5 is an optional A-BUS module for the ACA-E5 controller that adds four subzones to the system. These subzones support A-BUS keypads and share a source with the main zone but have independent room control for power and volume.

Included in this package is:
1 x AM4-E5 A-BUS Subzone Module
1 x A-PS4 Power Supply

Please call 0141 773 6886 to discuss current pricing and installation costs.

Keypad Connection:
(4) RJ45 T568A standard connectors

Power Supply:
24 VDC 4 A

Dimensions:
3.75”W x 1”H x 3.188”D (9.56 x 2.54 x 8.10 cm)

Weight:
1 lbs. (0.45 kg)

Included accessories:
(1) AM4-E5 module
(1) A-PS4 power supply

The AM4-E5 is an optional A-BUS module for the ACA-E5 controller that adds four subzones to the system. These subzones support A-BUS keypads and share a source with the main zone but have independent room control for power and volume.

The ACA-E5 hosts one or two AM4-E5 modules. Each AM4-E5 supports four A-BUS keypads (A-K3, A-K5L or A-KP2) with RJ45 ports for CAT-5 connection to keypads. Subzone keypads are typically located in rooms near each main zone. Speakers in these subzones connect directly to the A-BUS keypads with standard speaker cable.
