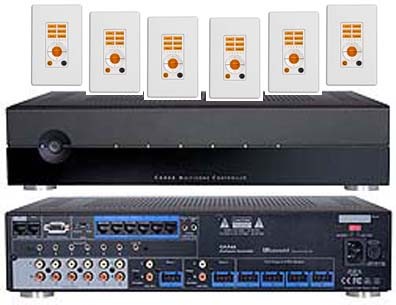

Russound CAA66K Multiroom Controller Amplifier

Overview
Specifications
Features
Description
Downloads
Price Beat

The Russound CAA66 caters to homeowners who want more control over their multiroom systems with such capabilities as infrared (IR) tools to manage the system from anywhere in the house. More source inputs, simplified programming and user adjustable sound controls make listening to music throughout the home easier than ever.

Included in this package is:
1 x Russound CAA66 Controller
6 x Russound KP6 Keypads

Please click here for an interactive demo

Please call 0141 773 6886 to discuss current pricing and installation costs.

CAA66K Controller

Zones per controller: 6

Zones per system: 36 maximum

Audio source inputs: 6

Input impedance: 50 kilohms

Amplifier channels: 12

Power output: 20 W RMS into 8 ohms

Frequency response:20 Hz to 20 kHz +0/-2.5 dB

Distortion: <0.10% THD+N from 20 Hz to 20 kHz

Signal-to-noise ratio: >90 dB A-weighted,>88 dB unweighted

Speaker impedance: 8 ohms

Audio line outputs: Switchable fixed/variable (zones 1 and 2 only), 2.2 Vrms

Trigger output: 12 VDC 100 mA max

Mute trigger input: 12VDC

Dimensions: 17" W x 3.9" H x 11.5" D(43 x 9.9 x 29.2 cm)

Power rating: 100–120 VAC 3 A or 220–240 VAC 1.25 A, 50–60Hz

Fuse rating: F3.0A H 250V USA/Canada F1.25A H 250V Europe

Weight: 17 lb 12.5 oz (8.1 kg)

CAA66K Keypad

Controls
On/off
Volume up/down
Source select
Audio (bass, treble, balance, turn-on volume, loudness)

IR control
Built-in IR receiver with pass-through

Backlight
Amber

Power requirement
12 VDC 180 mA (supplied through CAT-5 cable)

CAT-5 connector
110 punch-down block

Dimensions
1.85" W x 1.47" H x 2.7" D
(4.7 x 3.7 x 6.9 cm)
Fits single-gang UL/CSA-approved 18 ci wall box

Weight
4.0 oz (113 g)

CAA66K Controller

Full-featured—Six sources, six zones, internal IR library, RS-232, and switchable preamp outputs for flexibility and convenience

Adjustable—Bass, treble, balance, loudness and “all off” for total control from keypads

Programming ease—Program the controller and all zones are ready for use, saving time

Expandable—Linkable up to 36 zones to accommodate any size home

Distinctive—New two-unit-high rack-mountable controller design for elegant and practical solution

CAA66K Keypad

Functional Easy-to-use buttons and visual feedback for simple multiroom operation

Convenient Controls bass, treble, balance, loudness and “all off” for total control

Adaptable Includes 20 source labels for system personalization

Distinctive Sophisticated Decora®-style design, available in five colors

CAA66K Controller

Russound is proud to announce a new original to our multiroom product offerings. The new CAA66 system includes features not typically found at this price point. Simplified programming, audio playback adjustments and expandability make the CAA66 the only choice for affordable excellence in multiroom audio.

Three elegantly designed keypad options are available for control of your home audio. The KP6 includes 20 labels for personalizing source components, and the KPL has an LCD panel that makes enjoying multiroom audio easier. Adjust the bass, treble, and balance from the KP6 and KPL keypads. Combine either with the KPSC keypad for source control with no additional programming required.

Extensive IR device codes and learning capabilities are built into the CAA66, making remote and keypad control of the system as simple as pressing a key. Each zone of the CAA66 supports up to three keypads with the SA-ZX3 Keypad Splitter.

Russound has system kits that include all the necessary components for a CAA66 system. For additional cost savings, the kits include a CAA66 Controller-Amplifier, six keypads (KP6 or KPL), an SRC1 remote and six 845.1 emitters. For ease of installation, the controller can be rack mounted (with the provided rack ears). Keypads are available in five different colors, and fit perfectly in any Decora® plate.

For homeowners who want to extend the benefits of their Apple® iPod®, Russound makes it easy to connect an iPod to the CAA66 for sharing and enjoying music collections throughout the home.

The new CAA66 offers exceptional value, straightforward operation and simplified programming for multiroom audio made easy.

CAA66K Keypad

Russound’s KP6 Keypad gives you simple control of your CAA66 multiroom system. It includes 20 source labels to easily identify each system source, from a CD player to an iPod. The keypad also indicates volume and receives IR commands from a remote control.

You can adjust the bass, treble, balance, loudness and volume directly from each keypad to personalize the sound in the zone. For added convenience, you can turn the whole system off at any keypad.

Russound CAA66 Manual

Russound CAA66 Interactive Demo

Russound KP6 Keypad Manual
