The Russound CAA66 Multiroom Controller caters to homeowners who want more control over their multiroom systems with such capabilities as infrared (IR) tools to manage the system from anywhere in the house. More source inputs, simplified programming and user adjustable sound controls make listening to music throughout the home easier than ever.

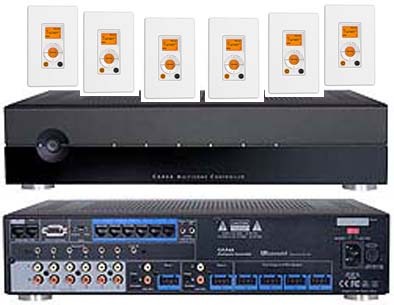

Included in this package is:
1 x Russound CAA66 Controller
6 x Russound KPL Keypads

Please click here for an interactive demo

Please call 0141 773 6886 to discuss current pricing and installation costs.

CAA66L Controller

Zones per controller:
6

Zones per system:
36 maximum

Audio source inputs:
6

Input impedance:
50 kilohms

Amplifier channels:
12

Power output:
20 W RMS into 8 ohms

Frequency response:
20 Hz to 20 kHz +0/-2.5 dB

Distortion:
<0.10% THD+N from 20 Hz to 20 kHz

Signal-to-noise ratio:
>90 dB A-weighted,>88 dB unweighted

Speaker impedance:
8 ohms

Audio line outputs:
Switchable fixed/variable (zones 1 and 2 only), 2.2 Vrms

Trigger output:
12 VDC 100 mA max

Mute trigger input:
12VDC

Dimensions:
17" W x 3.9" H x 11.5" D(43 x 9.9 x 29.2 cm)

Power rating:
100–120 VAC 3 A or 220–240 VAC 1.25 A, 50–60Hz

Fuse rating:
F3.0A H 250V USA/Canada F1.25A H 250V Europe

Weight:
17 lb 12.5 oz (8.1 kg)

CAA66L Keypad

Display:
5-character LCD panel with volume and status indication

Backlight:
Amber

Controls:
On/off
Volume up/down
Source select
Audio (bass, treble, balance, turn-on volume, loudness)

IR control:
Built-in IR receiver with pass-through

Power requirement:
12 VDC 180 mA (supplied through CAT-5 cable)

CAT-5 connector:
110 punch-down block

Dimensions:
1.85" W x 1.47" H x 2.7" D
(4.7 x 3.7 x 6.9 cm)
Fits single-gang UL/CSA-approved 18 ci wall box

Weight:
4.0 oz (113 g)

CAA66L Controller

Full-featured Six sources, six zones, internal IR library, RS-232, and switchable preamp outputs for flexibility and convenience

Adjustable Bass, treble, balance, loudness and “all off” for total control from keypads

Programming ease Program the controller and all zones are ready for use, saving time

Expandable Linkable up to 36 zones to accommodate any size home

Distinctive New two-unit-high rack-mountable controller design for elegant and practical solution

CA66L Keypad

Informative Shows source playing, bass, treble, balance, and volume level

Compatible Works with CAA66 and CAS44 controller amplifiers

Responsive Easy-to-use buttons and visual feedback for simple multiroom control

Convenient Includes programmable source names for personalizing system

Distinctive Sophisticated Decora®-style design, available in five colors

CAA66L Controller

Russound is proud to announce a new original to our multiroom product offerings. The new CAA66 system includes features not typically found at this price point. Simplified programming, audio playback adjustments and expandability make the CAA66 the only choice for affordable excellence in multiroom audio.

Three elegantly designed keypad options are available for control of your home audio. The KP6 includes 20 labels for personalizing source components, and the KPL has an LCD panel that makes enjoying multiroom audio easier. Adjust the bass, treble, and balance from the KP6 and KPL keypads. Combine either with the KPSC keypad for source control with no additional programming required.

Extensive IR device codes and learning capabilities are built into the CAA66, making remote and keypad control of the system as simple as pressing a key. Each zone of the CAA66 supports up to three keypads with the SA-ZX3 Keypad Splitter.

Russound has system kits that include all the necessary components for a CAA66 system. For additional cost savings, the kits include a CAA66 Controller-Amplifier, six keypads (KP6 or KPL), an SRC1 remote and six 845.1 emitters. For ease of installation, the controller can be rack mounted (with the provided rack ears). Keypads are available in five different colors, and fit perfectly in any Decora® plate.

For homeowners who want to extend the benefits of their Apple® iPod®, Russound makes it easy to connect an iPod to the CAA66 for sharing and enjoying music collections throughout the home.

The new CAA66 offers exceptional value, straightforward operation and simplified programming for multiroom audio made easy.

CAA66L Keypad

The KPL Keypad controls a CAS44 or CAA66 multiroom system. Its five-character display aids in source selection, offering over 100 source labels to name your sources. The display also indicates volume and system status.

Easily adjust the bass, treble, balance, loudness and volume directly from the keypad to personalize the sound playback in any zone. For added convenience, you can turn the whole system off at any keypad.

Russound CAA66 Manual

Russound CAA66 Interactive Demo

Russound KPL Keypad Manual

Whilst we at MIS Online believe our products are already competitively priced, in the unlikely event that you find a similar product cheaper elsewhere why not contact us to see if we can beat that price.

If you find a product cheaper elsewhere please call us on 0141 773 6886 or let us know using this contacts link.

Price: £ Please call for best price
