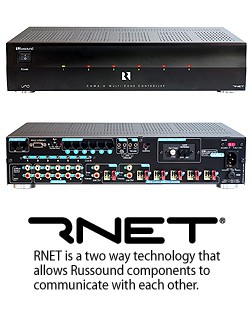

Russound CAM6.6 Multiroom Controller Amplifier

Overview
Specifications
Features
Description
Downloads
Price Beat

You enjoy it. Dance to it. Relax to it. And now, you don't even have to see it.Wherever you are, there can be music. At the touch of a button.

Included in this package is:
1 x CAM6.6 Controller
6 x 845.1 IR emitters

All Russound products included in the RNET series should only be installed by RNET certified installers.

Zones:
6 per controller, 36 total per system

Sources:
6 stereo audio, including built-in tuner

Control interfaces:
Russound UNO keypads
Russound UNO touchscreens
RS-232 control system (e.g., AMX, CorAccess,Crestron)

Convenience features:
System on/off from any keypad
Muting for doorbell or telephone
Favorite program presets
Do Not Disturb mode
Party mode

Zone audio controls:
Volume
Balance
Bass and treble
Loudness compensation

Audio amplifier:
Total channels: 12
Power: 20 watts per channel RMS into 8 ohms
Minimum load impedance: 6 ohms
Frequency response: 20 Hz – 20 kHz ±0.5 dB
Total Harmonic Distortion: ≤0.05%
Signal-to-noise ratio: 88 dB

Audio connections:
Source inputs: 6 (including internal tuner)
Source input level: 5 volts peak-to-peak, 10 kilohms
Zone outputs: 6 speaker level, 2 switchable line level
Zone variable line level: 5.6 volts peak-to-peak, 4 ohms @ 1 kHz
Zone fixed line level: 5.6 volts peak-to-peak, 4 ohms @ 1 kHz

Trigger connections:
Mute trigger input: 12 VDC
Mute trigger output: 12 VDC 100 mA
Home theater trigger input: 12 VDC
System trigger output: 12 VDC 100 mA

Power:
Voltage: 110 or 240 VAC, 50–60 Hz
Fuse Rating:F3A H 250V in USA and Canada T1.25A H 250V in Europe

Physical:
Dimensions: 17" W x 12" D x 3.5" H (43 x 30.5 x 9 cm)
Weight: 18 lb (8.1 kg)

Included accessories:
845.1 IR emitters (6)
Rack ears

Easy to use  Attractive UNO keypads and touchscreens give you complete system control and status

Convenient  Favorite presets, system on/off, infrared remote control, party mode

Intelligent  RNET® provides seamless operation with Russound Smart source equipment

Compatible  Built-in IR commands control virtually any audio source component

Expandable  Multiple controllers link together to provide more zones

The CAM6.6 multiroom receiver plays music from up to six audio sources in six different rooms of your home. Multiple receivers can link together for additional rooms.

The receiver comes in three versions. The CAM6.6T includes a built-in AM/FM tuner, while the CAM6.6X includes built-in XM^® Satellite Radio. A version without tuner, the CAM6.6, is available for zone expansion or for use as a multiroom controller-amplifier. All three versions are available in kits with UNO-S1 or UNO-S2 keypads.

With UNO keypads and touchscreens, the CAM6.6 communicates from its built-in tuner and other Russound Smart sources vital information such as preset name, AM/FM station frequency, XM station ID, artist, and song title.

Russound CAM6.6 Brochure

Russound CAM6.6 Manual
