The CAS44 delivers full-featured multiroom/multisource, high-fidelity audio at an entry-level price.

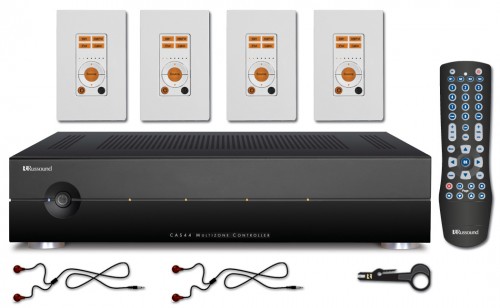

Included in this package is:
1 x CAS44 Controller
4 x KP4 Keypads
1 x CAS44 System Remote Control

Please click here for an interactive demo

Please call 0141 773 6886 to discuss current pricing and installation costs.

CAS44K Controller

Dimensions:
17"W x 11.5"D x 3.9"H (43 x 29.2 x 10 cm)

Weight:
17 lbs. 6.5 oz. (7.9 kg)

Power Supply:
220-240V @1.25A 50-60Hz

Fuse Rating:
240V input; TF1.25A H 250V Europe

Frequency Response:
20Hz-20kHz +0/-2.5dB

Watts per channel:
20W RMS into 8 ohms

Total Harmonic Distortion:
<0.10%

Signal to Noise Ratio:
>90.0 dB A-weighted / >88 dB unweighted

Audio Source Inputs:
4

Audio Zone Outputs:
4 speaker level (8 ohms)

Input Impedance:
50 kohms

Max Source Audio Input:
2.2 Vrms

Trigger Output:
12VDC 100mA Max

Trigger Input:
12VDC

CAS44K Keypad

Controls:
On/off
Volume up/down
Source select
Audio (bass, treble, balance, turn-on volume, loudness)

IR control:
Built-in IR receiver with pass-through

Backlight:
Amber

Power requirement:
12 VDC 180 mA (supplied through CAT-5 cable)

CAT-5 connector:
110 punch-down block

Dimensions:
1.85" W x 1.47" H x 2.7" D
(4.7 x 3.7 x 6.9 cm)
Fits single-gang UL/CSA-approved 18 ci wall box

Weight:
4.0 oz (113 g)

CAS44K Controller

Full-featured four-source/four-zone controller, 40 watts per zone, and rack mountable for flexibility and convenience

Expandable daisy-chain two controllers* for eight zones and three keypads per zone** for larger home installations

Adjustable bass, treble, balance, loudness and “all off” for total control from keypads

Versatile includes RS232 port for integration with home automation systems in today’s smart homes

Distinctive newly designed controller and keypads, available in five Decora colors, for an elegant and practical solution

*Not compatible with CAA66 or any RNET controllers.
**Requires SA-ZX3 Keypad Splitter, not included in the kit.

CAS44K Keypad

Functional Easy-to-use buttons and visual feedback for simple multiroom operation

Convenient Controls bass, treble, balance, loudness and “all off” for total control

Adaptable Includes 20 source labels for system personalization

Distinctive Sophisticated Decora®-style design, available in five colors

CAS44K Controller

Russound® announces the expansion of its controller-amplifier product offerings. For genuine ease, CAS44 includes features not typically found in competitive models at this price point.

Two elegantly designed keypad options are available for one-touch control of home audio components. The KP4 includes 20 labels for personalizing sources, and the KPL offers a LCD panel making multiroom audio control simple and enjoyable. The five-character display shows source name and volume level.
Control the bass, treble, balance, loudness and volume from any keypad in the home. The user can see the audio settings on the KPL display as they are adjusted for ease of use.

Russound has system kits that include all the necessary components for a CAS44 system. For additional cost savings, the kits include a CAS44 controller-amplifier, four keypads (KP4 or KPL), a CAS-RC and two 1545.1 dual emitters. For ease of installation, the controller can be rack mounted (with the provided rack ears). Keypads are available in five different colors and fit perfectly in any Decora® plate.

The new CAS44 offers exceptional value, straightforward operation and adjustable playback for multiroom audio made easy.

CAS44K Keypad

Russound’s KP4 Keypad gives you simple control of your CAS44 multiroom system. It includes 20 source labels to easily identify each system source, from a CD player to an iPod. The keypad also indicates volume and receives IR commands from a remote control.

You can adjust the bass, treble, balance, loudness and volume directly from each keypad to personalize the sound in the zone. For added convenience, you can turn the whole system off at any keypad.

Russound CAS44 Manual

Russound CAS44 Interactive Demo

Russound KP4 Keypad Manual
