Looking for an advanced system remote that combines the latest in technology and functionality? The RFR-E5 Radio Frequency Remote delivers.

Included in this package is:
1 x RFR-E5 RF Remote Control

Please call 0141 773 6886 to discuss current pricing and installation costs.

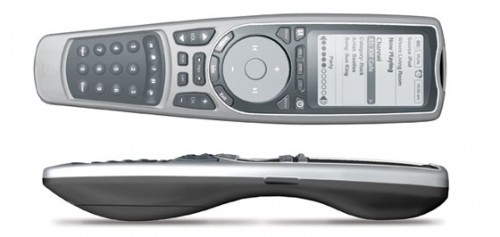

RFR-E5 Remote Control

Dimensions:
2.5”W x 1.6”H x 9.25”D (65 x 40 x 9.25 mm)

Weight: 1 lbs. (0.45 kg)

RF radio module:
2.4 GHz 802.15.4 data transceiver

RF range:
150 feet (indoor), 325 feet (outdoor) (typically depends on conditions)

Battery:
3.7V 800 mAh Lithium-ion cell (qty 2)

Battery life:
36 hours in standby, 11 hours active
(Actual battery life dependent upon use)

Cradle for Remote Control

Dimensions:
3.0”W x 2.37”H x 7.11”D (78.5 x 60 x 180 mm)

Weight:
1 lbs. (0.45 kg)

Power:
5 VDC 1A

Power supply:
100-240V 50/60 Hz 500mA

Network connection:
RJ45 T568A standard connector

Programming port:
4-pin DF13 header

Two-way communication and control via RF technology

Large LCD screen displays system metadata including source , song, artist and album

Click Wheel interface for easy scrolling through media libraries

Programmable IR control of three local sources

Docking cradle charges batteries and provides system connection via an ethernet cable

Looking for an advanced system remote that combines the latest in technology and functionality? The RFR-E5 Radio Frequency Remote delivers.

The RFR-E5 features a high-resolution, gray scale screen that displays source information and feedback from an ACA-E5 Multizone Controller Amplifi er, and an intuitive click wheel interface that allows users to easily scroll through playlists, stations, album libraries, and media collections. Through RF technology, it can control up to 12 system sources and 48 system zones from any zone in the system. The backlit remote also controls local sources, such as televisions, cable boxes and DVD players through IR pass-through.

The RFR-E5 communicates with an ACA-E5 system by twoway RF signals transmitted to its charging cradle. The charging cradle connects to the ACA-E5 through a single CAT-5e cable, allowing it to be located up to 250’ from a Multizone Controller Amplifier. RF communication and flexible charging cradle placement also make the RFR-E5 the perfect solution to controlling retrofi t zones that do not include a keypad or touchscreen for control.

Russound RFR-E5 Brochure

Whilst we at MIS Online believe our products are already competitively priced, in the unlikely event that you find a similar product cheaper elsewhere why not contact us to see if we can beat that price.

If you find a product cheaper elsewhere please call us on 0141 773 6886 or let us know using this contacts link.

Price: £ Please call for best price
