Russound 235LS Amplifier

Russound R-Series amplifiers are engineered to deliver genuinely high-performance power that's ideal for multiroom systems. Whether it's a simple stereo music setup, or an elaborate multiroom media installation, Russound R-Series amps are the answer for quality and reliability.

Stereo continuous output power:
35 watts per channel at 8 ohms
50 watts per channel at 4 ohms

Bridged mono output power:
100 watts at 8 ohms

Distortion:
<0.05% THD+N from 20 Hz to 20 kHz

Signal-to-noise ratio:
>100 dB A-weighted

Frequency response:
20 Hz to 20 kHz ±0.3 dB

Input sensitivity:
70 mV for 1 watt at 8 ohms
420 mV for 35 watts at 8 ohms

Line input impedance:
47 kilohms

Voltage gain:
32 dB

Delay time:
5 seconds to 5 minutes

Input trigger:
12 VDC 10 kilohms

Output trigger:
12 VDC 100 mA max

Power requirements:
North America: 120 VAC 60 Hz 1.2 A
Europe: 230 VAC 50 Hz 0.6 A

Dimensions:
8.625" W x 10"D x 2.375"H (22 x 25.4 x 6 cm)

Weight:
8.5 lb (3.8 kg)

Automatic  Autosensing inputs activate the amplifier upon detecting an audio signal

Convenient  Switches speakers between a local source and a distributed audio system

Compact  Low-profile design permits use in areas most amplifiers won’t fit

Powerful  Channels are bridgeable to create one channel with substantial power output

Reliable  Robust circuity is designed for long-term stability

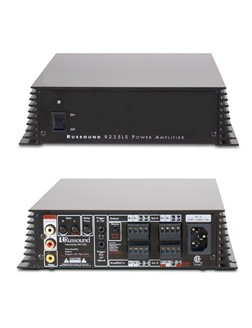

The R235LS is a 2-channel amplifier with automatic switching and a space-saving low-profile design.

Typically used for local source switching, the R235LS allows the source (e.g., a PC or TV in the bedroom) to automatically override the normal audio program in that particular zone of a distributed audio system. When the local source is turned on, the amplifier switches the room speakers to its own output. The R235LS provides autosensing line and amplified inputs as well as a trigger input for versatility in different applications.

The R235LS is rated at 35 watts per channel into 8 ohms and 50 watts per channel into 4 ohms. In bridged mode the R235LS is rated at 100 watts of power into a single 8-ohm load. Each amplifier output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.

Russound 235LS Amplifier Brochure

Russound 235LS Amplifier Manual

Russound 235LS Amplifier Data Sheet
