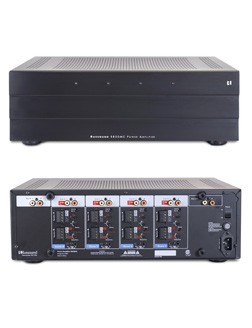

Russound R850MC Amplifier

Russound R-Series amplifiers are engineered to deliver genuinely high-performance power that's ideal for multiroom systems. Whether it's a simple stereo music setup, or an elaborate multiroom media installation, Russound R-Series amps are the answer for quality and reliability.

Single-zone maximum output power:
(0.1% THD+N; f=1 kHz)
50 W per channel, 2 channels at 8 ohms
80 W per channel, 2 channels at 4 ohms
140 W at 8 ohms, 2 channels bridged

All zones continuous output power:
35 W per channel, 12 channels at 8 ohms
50 W per channel, 12 channels at 4 ohms
100 W at 8 ohms, each zone bridged

Distortion:
<0.05% THD+N from 20 Hz to 20 kHz

Signal-to-noise ratio:
>100 dB

Frequency response:
20 Hz to 20 kHz +/-0.3 dB

Input sensitivity:
70 mV for 1 W at 8 ohms
500 mV for 50 W at 8 ohms

Line input impedance:
47 kilohms

Voltage gain:
32 dB

Delay time:
0.5 to 4.5 minutes

Input trigger:
12 VDC 10 kilohms

Output trigger:
12 VDC 100 mA

Power requirements:
  North America:
  120 VAC 60 Hz 5 A
  Fuse rating: T10AL 250 V
  Europe:
  230 VAC 50 Hz 2.5 A
  Fuse rating: T7AL 250 V

Dimensions:
17" W x 5.875"H x 16.5"D (43 x 15 x 42 cm)
3U rack space

Weight:
38.1 lb (17.3 kg)

Wide application use  Ideal for home theater and four-zone distributed audio systems

Adaptable  Zones are bridgeable to create flexible power configurations

Reliable  Robust circuitry designed for stability under demanding loads

Flexible  Installs with either attached feet or included rack ears

Efficient  Autosensing line inputs activate amplifier zones upon detecting audio signals

The Russound R850MC is an 8-channel power amplifier ideal for use as the main amplifier in home theater and distributed audio systems. The eight channels are arranged in pairs to provide amplification for four stereo zones.

The R850MC provides an array of useful features such as autosensing line inputs, bridged mono operation, independent zone triggering, bus inputs and multiple speaker outputs per zone to meet a wide variety of applications and configurations.

The R850MC is rated at 50 watts per channel into 8 ohms and 80 watts per channel into 4 ohms. With a zone’s mode switch set in the Bridge Mono position, both channels in the zone are combined for a mono output of 140 watts into an 8-ohm load. All this power is supplied by two high-output toroidal transformers. Each output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.

Russound R850MC Amplifier Brochure

Russound R850MC Amplifier Manual

Russound R850MC Amplifier Data Sheet
