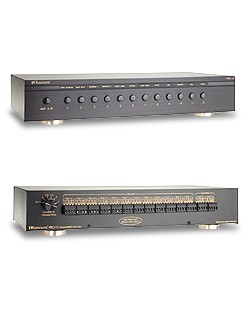

Russound PRO-12HP Speaker Selector
- Overview
- Specifications
- Features
- Description
- Downloads
- Price Beat
The PRO and PRO-VC series speaker selectors are highly efficient dual-source, impedance-matching selectors. These high-quality speaker selectors are designed for use with either 4 Ohm or 8 Ohm amplifiers and 4 Ohm to 8 Ohm speakers. In addition to speaker selection, the PRO-VC units include a volume control on the number 1 pair of speakers.
Power handling:
100 watts RMS continuous per channel
300 watts peak per channel
Minimum speaker impedance:
4 ohms
Impedance matching type:
Autoformer
Low-frequency protection:
Bipolar capacitor circuit
6 dB high-pass filter, centered at 30 Hz
Amplifier and speaker connectors:
Detachable 4-pole color-coded snap connectors
Maximum wire size:
14 AWG (1.9 mm)
Dimensions:
17” W x 2.875” H x 8.25” D (43.2 x 7.3 x 21.0 cm)
Weight:
8.0 lb (3.6 kg)
Convenient Lets you control speakers in several rooms from a central location
Customizable Printed room labels included
Easy Detachable snap connectors are color coded for easy wire termination
Flexible Selectable impedance matching accommodates 4- or 8-ohm speakers
Safe Low-frequency protection circuit helps to guard your amplifier
Robust Audiophile-quality autoformers provide high performance for years
The PRO-12HP is a robust, efficient dual-source speaker selector for up to 12 pairs of speakers. Designed for demanding applications, this high-quality speaker selector features a low-frequency protection circuit to reduce subsonic signals. This allows higher power operation without amplifier shutdown.
An A/B switch on the front panel allows you to power all your speakers with either of two source amplifiers. The PRO-12HP is designed for use with either 4- or 8-ohm speakers.
The PRO-12HP uses audiophile-grade autoformers for impedance matching to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. A rotary switch on the rear panel sets the appropriate impedance for your amplifier, based on the number of speaker pairs connected.
