TelecomFM GSM-Route BRI 1/2 SIM

TelecomFM's GSM-Route Bri has been developed to enable major mobile carriers and resellers to convert outgoing and incoming calls from ISDN to mobile, thus enabling end customers to take advantage of cost savings and also provide redundancy in the event of a fixed line failure.

The GSM-Route Bri will automatically detect its environment and will adapt accordingly, providing a robust fail-safe operation.

The GSM-Route Bri is compact, versatile and reliable, and offers cost effectiveness in a competitive market.

As with all TelecomFM products the deployed GSM-Route Bri can provide regular management information and can be reconfigured via the TelecomFM Digital Management Centre, so keeping it in line with market conditions and maintaining the competitive edge for our customers.

The Telecom FM GSM Route BRI ISDN2e GSM gateway can be connected to a spare ISDN2e Trunk port on a phone system or be used 'In Line' between the ISDN Trunk port of the telephone system and an ISDN2e telephone line. The GSM Route BRI can provide automatic least cost routing of calls based upon the prefix eg. all calls starting 07 use one of the SIM cards and all other calls pass through to the ISDN2e telephone line.

Technical Overview

Power 110-240v. 50-60Hz
Operating Temp. 0 - 45ºC
Humidity 0 - 85% non-condensing

Physical Specification

Length 286 mm
Width 208 mm
Height 52 mm

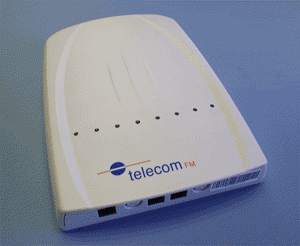

Weight (unit) 900g (GSM-Route, as photo.)
Weight (total) 2.08kg (with power supply,
antennae, packaging etc.)

GSM Interface

Bands E-GSM 900MHz, GSM 1800MHz,GSM Phase 2+
Transmit Power Class 4 (2W) for E-GSM 900MHz
Class 1 (1W) for GSM 1800MHz
Speech Codecs Half Rate (ETS 06.20)
Full Rate (ETS 06.10) EN 301 419-1
Enhanced Full Rate
Antenna External omni-directional antenna
with SMA connection

Approvals

CE Certification to R & TTE directive 1999/5/EC
GSM Certifications:
ETS 300 607-1
- Digital Cellular Telecommunications system
EN 301 419-1
- Global System for Mobile communication
ETS 300 342-1
- Radio Equipment and Systems
(ETS 06.50 / 06.60 / 06.80)

Features

Intelligent routing The GSM-Route Bri provides intelligent call routing, to provide the customer with the most cost effective routes. There is NO requirement for dedicated ports on the PBX and NO PBX re-programming is required.

Network fail-safe The GSM-Route Bri will adapt to loss of either the GSM or ISDN network and continue to provide a partial service.

WLL operation The GSM-Route Bri is capable of operating as a wireless local loop without being connected to an ISDN network.

ETSI compatible The GSM-Route Bri automatically detects the ISDN configuration of the basic rate interface and adapts to either point-to-point or point-to-multipoint operation.

Multi-network The product can be set up to support multiple networks with dual GSM modules and locked to those networks to prevent abuse.

Remote management The unit can be remotely managed via TelecomFM’s Digital

Management Centre. It will provide statistical operational information, detailed real-time diagnostics and allow itself to be reconfigured to maintain its cost effectiveness in a competitive market.

TelecomsFM GSM Route BRI Manual

TelecomsFM GSM Route BRI Data Sheet
