Russound VBC Composite Audio-Video Balun Kit

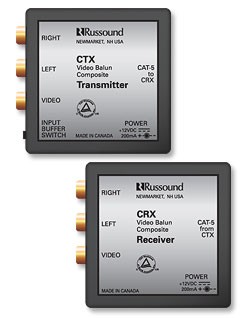

The VBC Composite Audio Video Balun Kit contains a pair of active circuitry (powered) baluns for sending composite video and two-channel analog audio over a single CAT-5 cable. This kit includes a transmitter and receiver and would be used in multiroom audio-video distribution systems to remotely locate an audio-video source from a distribution or display device.

CTX Transmitter:

Input connectors:
(1) composite video RCA jack (2) left and right audio RCA jacks

Output connector:
8-pole modular RJ-45 jack, T568A

Audio input impedance:
20 kilohms

Audio input level:
3 V maximum peak to peak

Weight:
2.6 oz (73 g)

CRX Receiver:

Input connector:
8-pole modular RJ-45 jack, T568A

Output connectors:
(1) composite video RCA jack (2) left and right audio RCA jacks

Weight:
2.4 oz (69 g)

VBC Kit Cable type:
CAT-5

Maximum cable length:
1000 ft (305 m)

Video format:
Composite

Video bandwidth:
100 MHz +0/–3 dB

Video signal level:
0.5 V to 2 V

Audio format:
2-channel analog

Audio and video gain:
Unity

Power requirement:
12 VDC 200 mA max (adapter included)

Module dimensions:
2.75” W x 2.64” H x 1.1” D (7.0 x 6.7 x 2.8 cm)

Powered  Active circuitry eliminates signal loss

High fidelity  Exceptional sound and superior picture quality

Clear  Balanced signals elimate ground loops and resist interference

Cost effective  Modules connect with inexpensive CAT-5 cable

The VBC Composite Audio-Video Balun Kit provides a pair of active baluns for sending composite video and line-level stereo audio signals over a single CAT-5 cable. This allows signals to travel longer distances without degradation or interference than with traditional coaxial cable solutions.

The kit can be used to connect a remote source to a multiroom audio-video controller or TV. It can also be used to send the output of a video distribution device to a TV or A/V receiver.

The VBC kit includes a CTX Transmitter module, a CRX Receiver module and a power supply. Active circuitry in the transmitter automatically adjusts the output level to compensate for the cable length, thus eliminating signal loss up to 1000 feet (305 m).

Russound VBC Composite Audio Video Balun Kit Manual

Russound VBC Composite Audio Video Balun Kit Data Sheet
