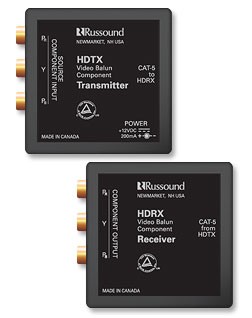

Russound VBHD Component Video Balun Kit

The VBHD Component Video Balun Kit contains a pair of active circuitry (powered) baluns for sending component video over a single CAT-5 cable. This kit includes a transmitter and receiver and would be used to distribute video from a central source to a remotely located video device.

HDTX Transmitter:

Input connectors:
(3) component video RCA jacks (PR, Y, PB)

Output connector:
8-pole modular RJ-45 jack, T568A

Weight:
2.4 oz (67 g)

HDRX Receiver:

Input connector:
8-pole modular RJ-45 jack, T568A

Output connectors:
(3) component video RCA jacks (PR, Y, PB)

Weight:
2.3 oz (66 g)

VBHD Kit Cable type:
CAT-5

Maximum cable length:
500 ft (152 m)

Video format:
Analog component up to 1080i

Video bandwidth:
450 MHz +0/–3 dB

Video signal level:
0.5 V to 2 V

Video signal gain:
Unity

Power requirement:
12 VDC 200 mA max (adapter included)

Module dimensions:
2.75” W x 2.64” H x 1.1” D (7.0 x 6.7 x 2.8 cm)

Powered  Active circuitry eliminates signal loss

High definition  Compatible up to1080i—great for home theater installations

Clear  Balanced signals elimate ground loops and resist interference

Cost effective  Modules connect with inexpensive CAT-5 cable

The VBHD Component Video Balun Kit provides a pair of active baluns for sending a component video signal over a single CAT-5 cable. This allows signals to travel longer distances without degradation or interference than with traditional coaxial cable solutions.

Compatible with analog high-definition video signals up to 1080i, the kit can be used to connect a remote source to a home theater receiver or to send the output of an A/V receiver to a remote TV.

The VBHD kit includes an HDTX Transmitter module, an HDRX Receiver module and a power supply. Active circuitry in the transmitter automatically adjusts the output level to compensate for the cable length, thus eliminating signal loss up to 500 feet (152 m).

Russound VBHD Component Video Balun Kit Manual

Russound VBHD Component Video Balun Kit Data Sheet
