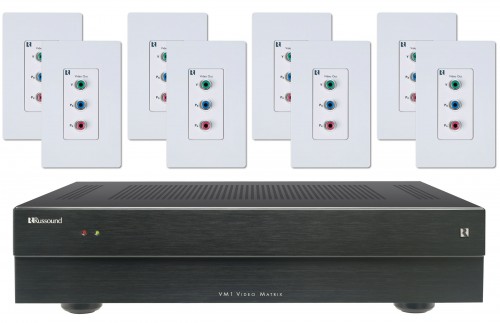

Russound VM1-8 Video Matrix Zone Kit

The VM1 Video Matrix distributes component video signals in resolutions up to 1080p from four or eight sources to up to eight zones at distances of 300’. Send your Satellite TV signal to the master bedroom, the den, or both. Upconvert the VCR signal from the living room and watch it on your projection screen in the home theater. Russound’s Video Matrix makes it easy.

VM1 Video Matrix:

Component video connectors:
3 RCA per input

Zone output connectors:
8-pole modular RJ-45

System cable:
CAT-5e

Maximum cable length:
300 ft (90 m)

Video resolution:
Up to 1080p

System bandwidth:
40 MHz

Communication ports:
RJ-45 RNET Link,DB9 RS-232, USB 1.1

Power requirement:
24 VDC 2.5 A (adapter included)

Chassis dimensions:
17” W x 3.43” H x 13.15” D (43.0 x 8.7 x 3.34 cm)

Weight:
11.65 lb (5.28 kg)

VM1 8:
Component video inputs: 8
Zone outputs: 8

Included Accessories:
(1) 8x8 Matrix (VM1)
(8) Video Receivers (VMR1)
(1) Power Supply (A-PS)

* Includes Wall Plates

High definition  Distributes component video signals in resolutions up to 1080p

Capable  Upconverts composite and S-video signals to component video signals

Adaptable  Available in four-source, four-zone and eight-source, eight-zone configurations

Seamless  Integrates with RNET® and CAA66 multiroom systems

The VM1 Video Matrix works with a multiroom audio system to distribute component video. It routes video signals to VMR1 receivers in as many as eight zones, each using a single CAT-5e cable. Active video circuitry prevents signal loss and interference in cable lengths up to 300 feet.

Capable of handling high-definition component video signals, the VM1-8 was designed for use with Russound RNET^® multiroom solutions. It provides seamless integration with Russound CAM, CAV, and CAA66 multiroom systems and works with other distributed audio systems using RS-232 serial control. Designed with the future in mind, the VM1-8 is able to support 1080p resolution in the analog component video format if such content becomes available.

Russound VM1-8 Video Matrix Brochure

Russound VM1-8 Video Matrix Manual

Russound VM1-8 Video Matrix Product Brief

Russound VM1-8 Video Matrix Data Sheet
