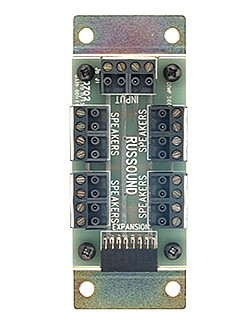

Russound EZB-1SC Volume Controler

These units are used to connect multiple UltraMatch™ volume controls to a single amplifier (a "home run" configuration). Both models have connections for four pairs of speakers. EZB-1 connects directly to amplifier outputs.

Power handling:
300 watts peak, 150 watts RMS continuous per channel

Amplifier and speaker connectors:
Screwless, removable color-coded snap connectors

Maximum wire size:
14 AWG (1.9 mm)

Expansion connector:
8-pin female socket

Dimensions:
1.75” W x 0.75” H x 4.25” D (4.4 x 1.9 x 10.8 cm)

Weight:
6 oz (170 g)

Easy  Removable color-coded connectors make wiring a snap

Tidy  Compact size mounts easily near amplifier

Versatile  Isolated ground terminals accommodate amplifiers of all types

Expandable  Includes connector for expansion with EZB-2SC

The EZB-1SC provides an easy and convenient way to connect up to four pairs of speakers to one stereo amplifier. Its compact size, removable connectors, and expandability make it a must-have when paralleling multiple speaker pairs.

Color-coded snap connectors make connections a breeze and accept wire up to 14 AWG (1.9 mm). The EZB-1SC includes a female expansion connector that allows an EZB-2SC to to simply plug in to connect four more pairs of speakers.

The EZB-1SC is designed for use with impedance-matching volume controls on the individual speaker pairs.

Russound EZB-1SC Connecting Block Brochure

Russound EZB-1SC Connecting Block Manual
