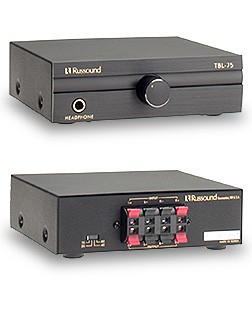

Russound TBL-75 Volume Controler
- Overview
- Specifications
- Features
- Descriptions
- Downloads
- Price Beat
This is a separate (and practical) volume control which operates independently of other volume controls in the system. Installer configurable to 1X, 2X, 4X, or 8X impedance matching. Features built-in headphone jack with automatic shut-off of speaker output.
Volume adjustment:
12 steps including Off; total attenuation 43 dB
Power handling:
126 watts peak, 42 watts RMS continuous per channel
Frequency response:
20 Hz – 20 kHz, +1.0/-0.5 dB at rated power
Minimum speaker impedance:
4 ohms
Impedance matching type:
Autoformer
Headphone output:
1/4” (6.35 mm) TRS jack
Amplifier and speaker connectors:
Spring terminals
Maximum wire size:
14 AWG (1.9 mm)
Dimensions:
6.0” W x 1.938” H x 6.313” D (15.2 x 4.9 x 16.0 cm)
Weight:
2.5 lb (1.13 kg)
Convenient Freestanding design can be located on a desk, counter, or tabletop
Versatile Controls a pair of speakers, headphones, or both
Simple Selects 11 steps of volume plus off
Configurable Allows impedance matching for up to 16 speaker pairs per system
Reliable Precision autoformers assure long life and superior performance
The TBL-75 is a free-standing, 126-watt tabletop volume control with a headphone jack. It connects to the speaker outputs of an amplifier or receiver and can connect to a pair of speakers or just provide volume control for a pair of headphones. Connecting headphones disconnects the speakers in the room for private listening.
An impedance switch on the TBL-75 allows installers to easily match the load of multiple speaker pairs to the amplifier impedance without the need for a speaker selector or other impedance-matching equipment.
All Russound volume controls are made with precision autoformers for high-fidelity sound, excellent frequency response, no heat buildup, and maximum power transfer from the amplifier to the speakers.
